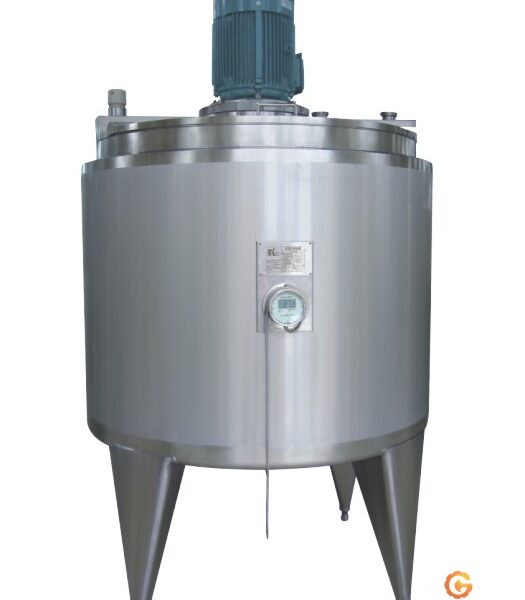

乳化罐
高剪切乳化罐是目前国内乳品.饮料.食品等行业最先进的混合设备。本公司生产的高剪切混合乳化机引进了国外先进技术，具有独特的搅拌结构，与众不同的粉碎功能，转子和定子的精密配合，确保了被加工物料每分钟受到几十万的告速剪切，三中可互换的定子头。
该设备适用于乳剂.胶酱.油漆.颜料.染料.造纸.农药制品等化工.轻工业对液一液.液一固物料包括任何需要搅拌.分散.乳化.均质.粉碎.悬浮和溶解的过程均可迅速完成罐体配置:
1.快开式人孔
2.可拆卸CIP喷淋清洗球
3.防蝇虫卫生级透气罩
4.巧调式三角支腿
5.可拆卸进料管套件
性能特点
- 采用内筒体、夹套加外包，中间填充保温材料结构。
- 材料均为卫生级不绣钢。
- 结构设计极具人性化，可操作性强。
- 筒体内壁过渡段采用圆弧过渡，保证卫生无死角
The high speed shear emulsification tank is the most advanced mixing
equipment inland. It has been used widely in the field of dairy, beverage,
and food. The high speed shear emulsification tank we produce adopt
advanced imported technology, and is featured of unique mixing structure,
and crushing function. The compact structure of rotor and stator ensure the
raw material will be cut with the speed of hundreds of thousand per minute,
high-shear emulsification tank is advanced mixing equipment widely used in
dairy, beverage and food industries.
| 型号 | 容积(L) | 外径(mm) | 高度(mm) | 功率r(kw) | 转速(r/min) |
|---|---|
| GCRH-500 | 500 | 800 | 2140 | 7.5 | 2900/1440 |
| GCRH -1000 | 1000 | 1050 | 2380 | 11 | 2900/1440 |
| GCRH -1500 | 1500 | 1180 | 2450 | 15 | 2900/1440 |
| GCRH -2000 | 2000 | 1340 | 2760 | 18.5 | 2900/1440 |
| GCRH -3000 | 3000 | 1540 | 2870 | 22 | 2900/1440 |
