不锈钢储罐

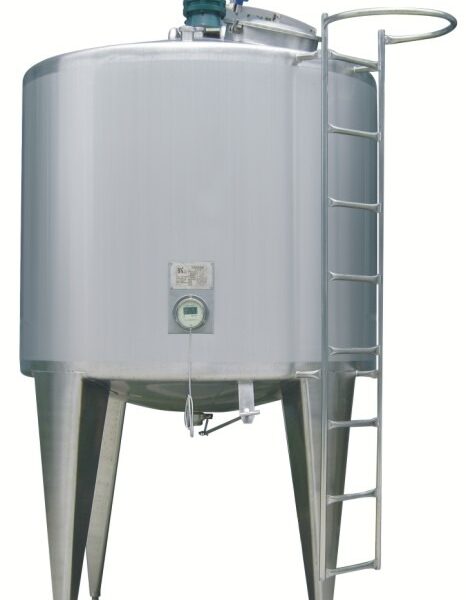

搅拌罐
1. 可作储液罐、混料耀、暂存罐、调配罐等。
2. 适用于食品、乳制品、果汁饮料、医药化工及生物工程等领域。
罐体配置:
1.快开式人孔
2.可拆卸CIP喷淋清洗球
3.防蝇虫卫生级透气罩
4.巧调式三角支腿
性能特点
- 采用内筒体、夹套加外包，中间填充保温材料结构。
- 材料均为卫生级不绣钢。
- 结构设计极具人性化，可操作性强。
- 筒体内壁过渡段采用圆弧过渡，保证卫生无死角
Mixing tank is used as liquid storage tank, liquid composing tank,
temporary storage tank and liquid blending tank, etc.
Ideal in fields such as foods, dairy products, fruit juice beverages,
pharmacy, chemical industry and biological engineering etc.
Configuration of tank:
1. Quick open manhole.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
| 型号 | 容积(L) | 外径(mm) | 高度(mm) | 保温厚度(mm) | 物料进出口径 |
|---|---|
| MT-0.5 | 500 | 800 | 2140 | 50 | Ø38/Ø51 |
| MT-1 | 1000 | 1050 | 2380 | 50 | Ø38/Ø51 |
| MT-1.5 | 1500 | 1180 | 2550 | 50 | Ø38/Ø51 |
| MT -2 | 2000 | 1340 | 2760 | 50 | Ø38/Ø51 |
| MT -2.5 | 2500 | 1420 | 2940 | 50 | Ø38/Ø51 |
| MT -3 | 3000 | 1540 | 3050 | 50 | Ø38/Ø51 |
| MT -4 | 4000 | 1650 | 3200 | 50 | Ø38/Ø51 |
| MT -5 | 5000 | 1780 | 3250 | 50 | Ø38/Ø51 |
| MT -6 | 6000 | 1900 | 3350 | 50 | Ø38/Ø51 |
