Tube in tube sterilizer
Application: heat treatment of food/dairy/beverage products
Capacity range: 1000-12000 kg/h
Outlet temperature: 32-45℃
Power range: 14.1-132 kw
Steam consumption range: 150-1800 kg/h
Control system: PLC automatic with Siemens and Omron components
Key feature: superheating water heating with anti-scaling design
Category：Mango Pulp Processing Line
Product Details

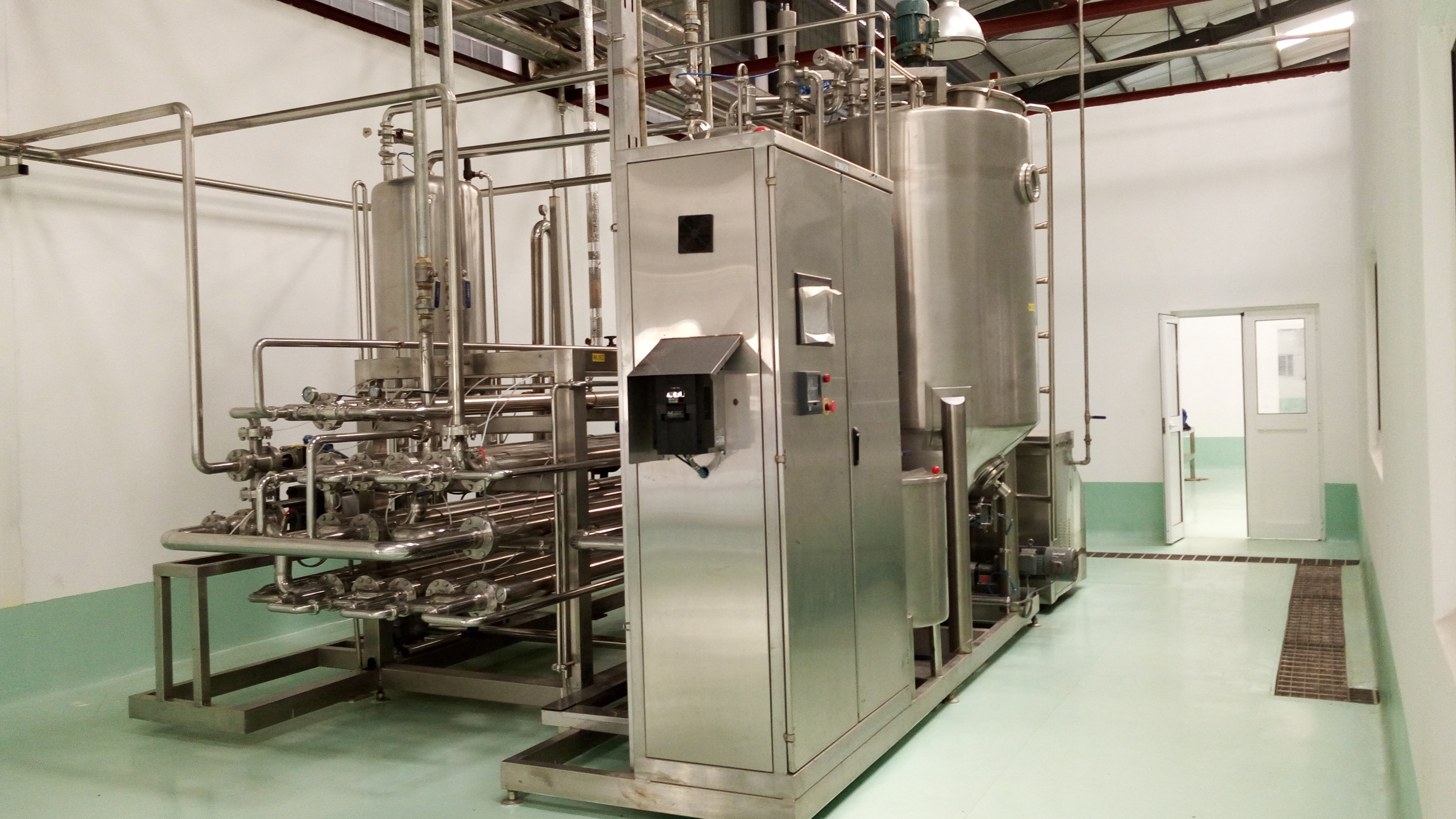

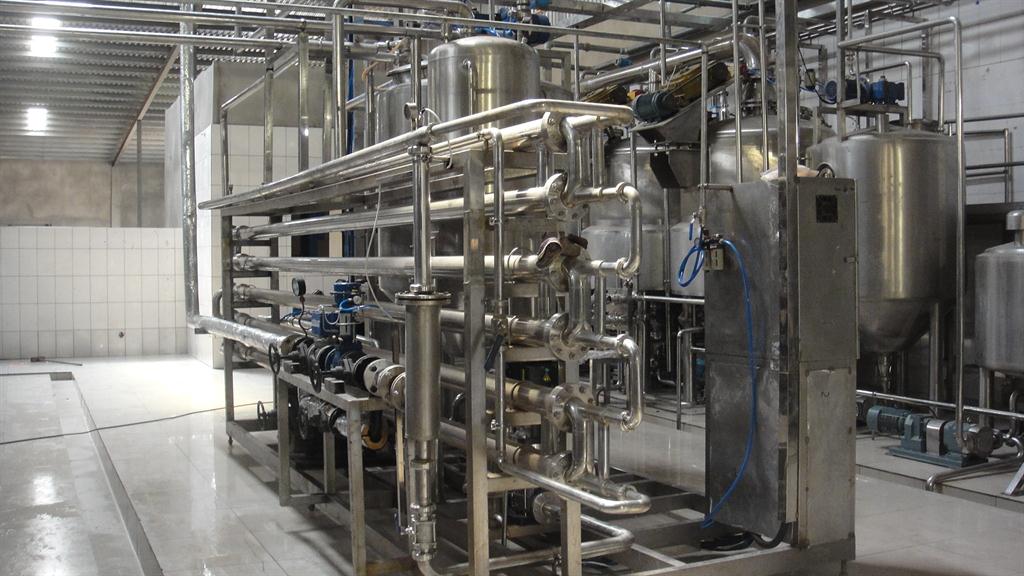

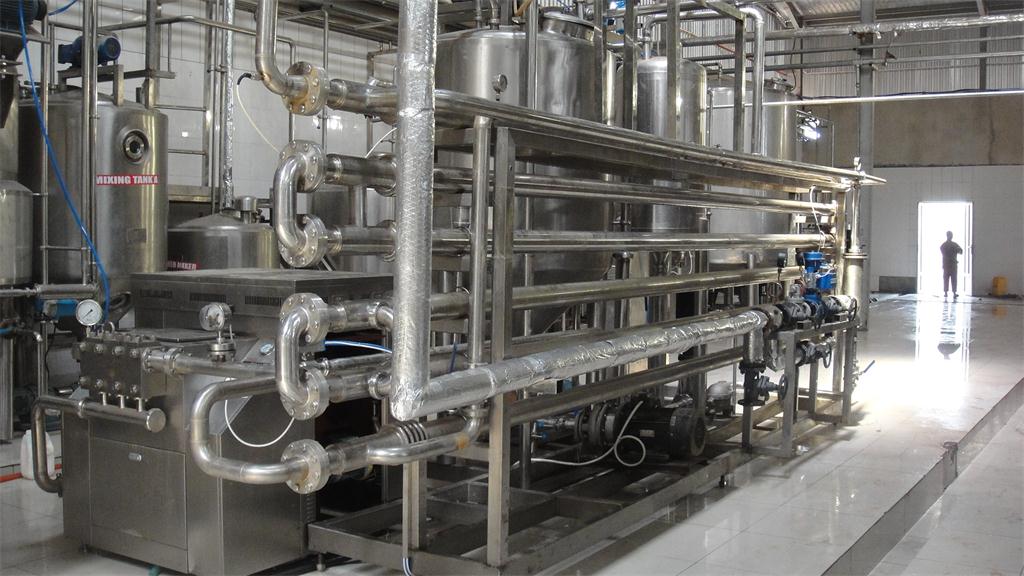

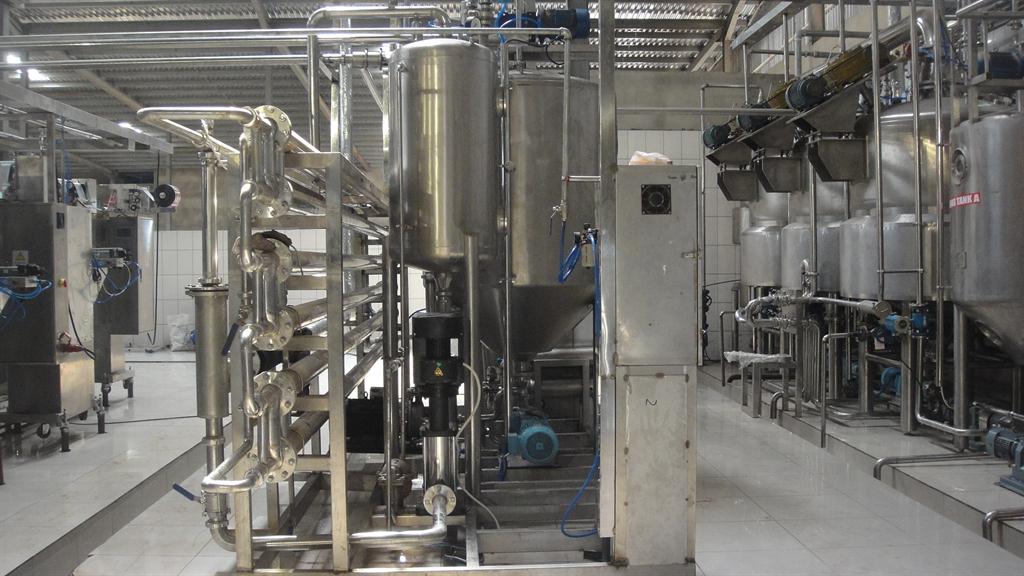

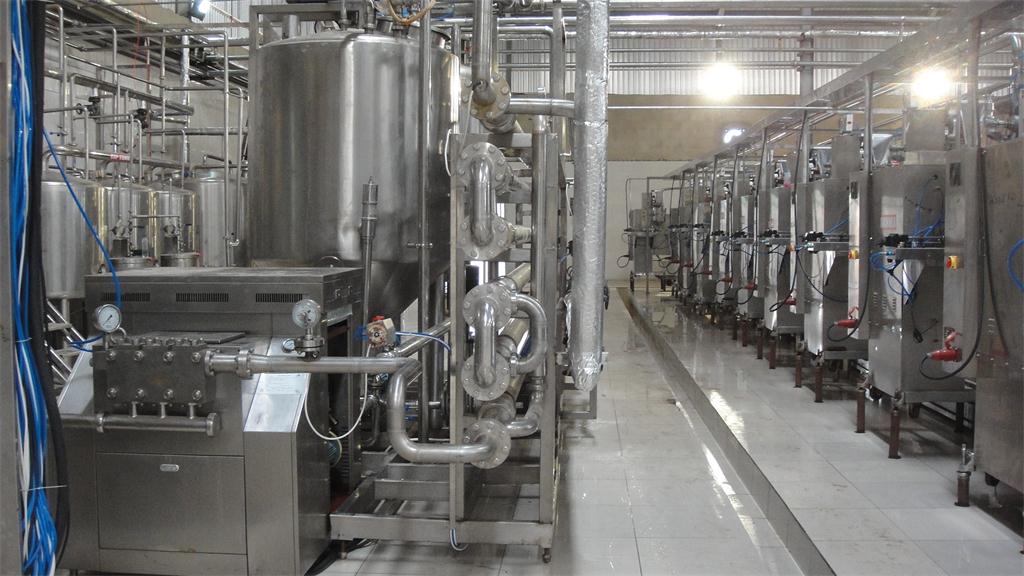

The sterilizer is composed of four layer sleeving pipe or multi-pipe heat exchanger, stepless speed change conveying pump, holder, closed water barrel, superheating water generator, frame, controller etc. Includes heating section, sterilizing section and cooling section. Tube group has the features of simple structure and small resistance.
With the flange isolates air protection, automatic and pneumatic control, the output and reflux is controlled by valves via thermal resistance and PLC. Capacity and lift of the cleaning pump is larger than the similar products. There is diversion device to enhance the heat transfer effect and also can avoid scaling inside the tube.
Technical Parameter
| Model | Capacity (kg/h) | Products outlet temp. (℃) | Power (kw) | Steam consumption (kg/h) | Water consumption 20℃ (kg/h) | Compressed air consumption (kg/h) |
|---|---|---|---|---|---|---|
| GC-SJ-1 | 1000 | 32-45 | 14.1 | 150 | 5000 | 0.1 |
| GC-SJ-2 | 2000 | 32-45 | 19.2 | 300 | 10000 | 0.1 |
| GC-SJ-3 | 3000 | 32-45 | 33 | 450 | 15000 | 0.3 |
| GC-SJ-6 | 6000 | 32-45 | 64.5 | 900 | 42000 | 0.3 |
| GC-SJ-8 | 8000 | 32-45 | 80.5 | 1200 | 56000 | 0.4 |
| GC-SJ-10 | 10000 | 32-45 | 110 | 1500 | 70000 | 0.5 |
| GC-SJ-12 | 12000 | 32-45 | 132 | 1800 | 84000 | 0.5 |
Characteristic
- There is superheating water and cooling water channel during the cleaning which can avoid the scaling.
- Adopting the method of superheating water heating to improve the heat effect.
- Automatic PLC system, multi-stage recorder to record important temperature.
- Superheating water device.
- Hot water circulation passing centrifugal pump.
- Temperature automatic control system.
- CIP device: caustic soda and acid feeding tank. Centrifugal pump is used for the circulation of cleaning liquor.
- Frequency conversion is to control the cooling temperature of the material.
- Spirax Sarco steam valve, SIEMENS and OMRON electrical components. The PLC monitor can indicate every parameter directly to inspect it in time easily and guarantee the stability of running.
