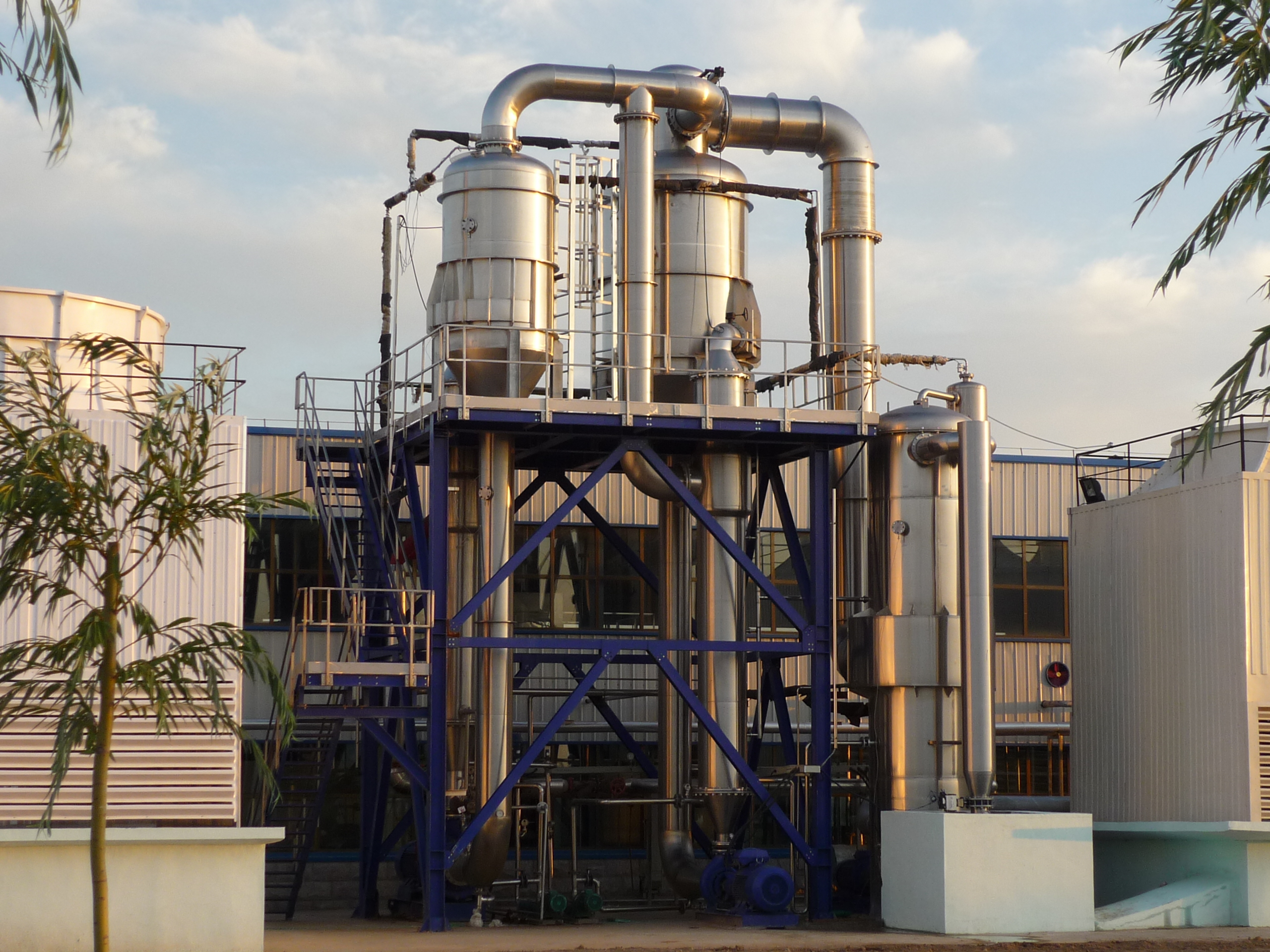

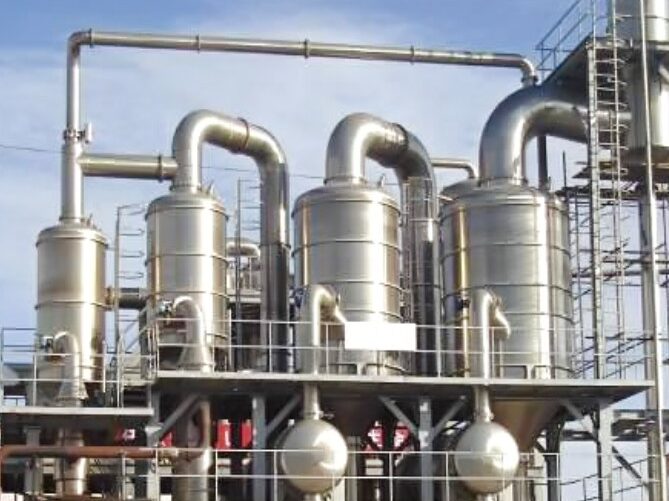

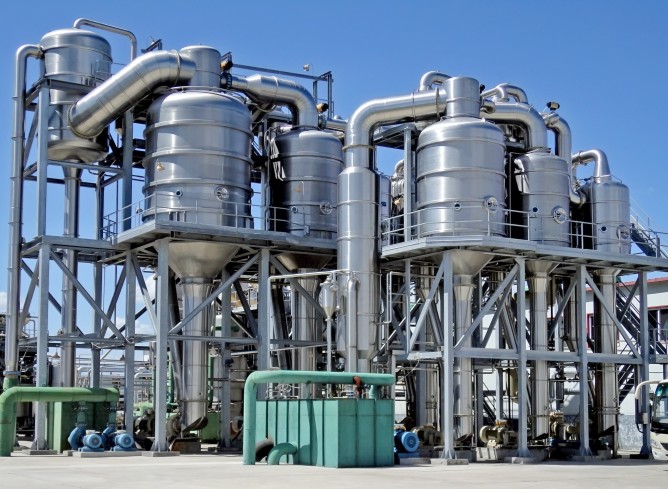

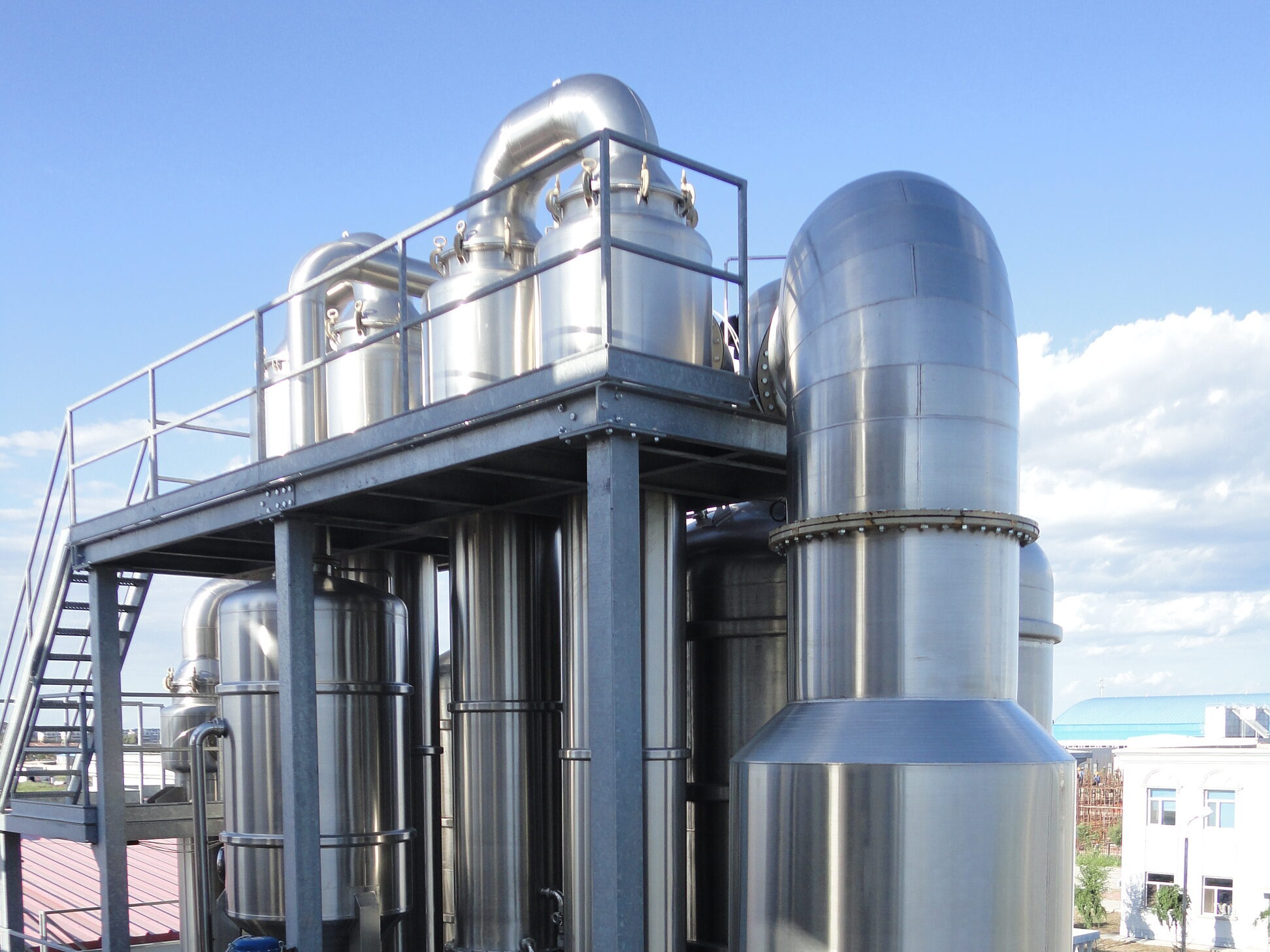

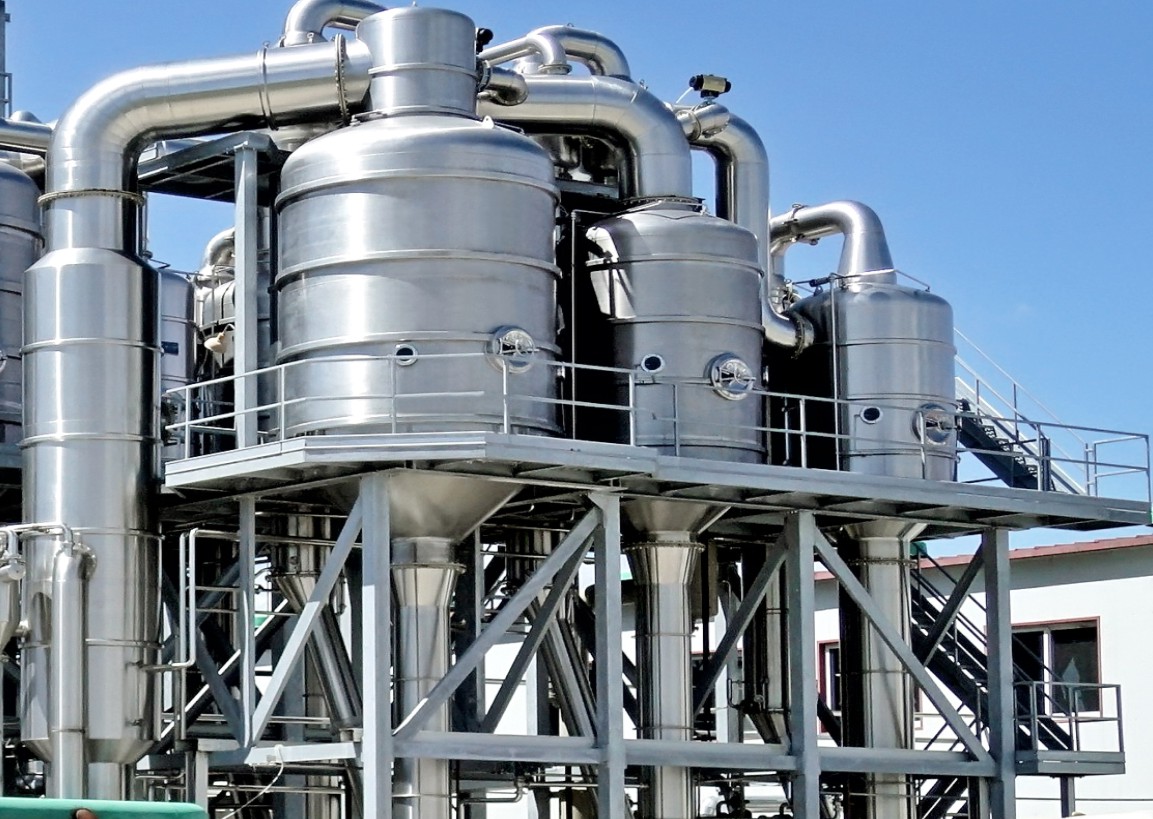

Fruit jam vacuum evaporator
Capacity: 150-1500 ton/day
Evaporation: 5300-51840 kg/h
Power: 105-615 kw/h
Steam: 2120-23800 kg/h
Category：Mango Pulp Processing Line
Product Details
Fruit jam vacuum evaporator is applicable for heat-sensitive, high-viscous material such as tomato paste, mango puree, guava puree, passion fruit puree, blackberry puree and the other fruit puree.
It can in low-temperature continuous concentration under vacuum. The mainframe is composed of heater, evaporating chamber, hydraulic sprayer, multi-level pump water tank, circular out-feed pump and operation platform.
Low temperature makes the end products have better color, flavor and nutrition. Products feeding, temperature control, products brix control, cooling water discharge is controlled automatically in the whole and manual control separately.
The main frame is composed of heater, evaporating chamber, multi-level pump, water tank, circular out-feed pump and operation platform.
Technical Parameter
| NO. | Capacity (Ton/day) | Evaporating Capacity (Kg/h) | Electricity Consumption (kw/h) | Water Consumption (t/h) | Steam consumption (kg/h) |
|---|---|---|---|---|---|
| 1 | 150 | 5300 | 105 | 150 | 2120 |
| 2 | 300 | 10560 | 190 | 300 | 4300 |
| 3 | 400 | 13800 | 197 | 400 | 5600 |
| 4 | 500 | 17280 | 205 | 500 | 7200 |
| 5 | 600 | 20700 | 380 | 600 | 8300 |
| 6 | 800 | 27600 | 394 | 800 | 11500 |
| 7 | 1000 | 34560 | 410 | 1000 | 14000 |
| 8 | 1200 | 41400 | 591 | 1200 | 17000 |
| 9 | 1500 | 51840 | 615 | 1500 | 23800 |
Characteristic
- The whole set system has reasonable and beautiful design, stable operation, high efficiency, energy saving and low steam consumption.
- Large concentration ratio, forced circulating type, which can make the materials of larger viscosity easily flow and evaporate and shortens the concentrating time.
- The special design can make modifications of effects easily to realize production of various products.
- Low evaporation temperature. The heat quantity can be fully used. The heating of materials is warm, so it is applicable for concentration of heat sensitive materials.
- After forced circulating, the evaporator is heated evenly in the pipe with high heat transfer coefficient in order to prevent the occurrence of “dry walls”.
- The materials and liquids are separated after coming into the separator. The effect of separating is greatly improved, and it is flexible to operate.
- The whole set equipment is quite compact and occupies little area. The layout is simple and fluent, all of which are the developing tendency of evaporating equipment.
- The equipment is continuous materials inlet and outlet. The liquid level and needed concentration can be automatically controlled.
