Aseptic filling machine
Model: GC-AF-1 / GC-AF-2
Capacity: 1-10 t/h
Power: 1.5-3 kw
Steam consumption: 100-200 kg/h
Control: PLC automatic with SIEMENS
Category：Tomato Paste Production Line
Product Details

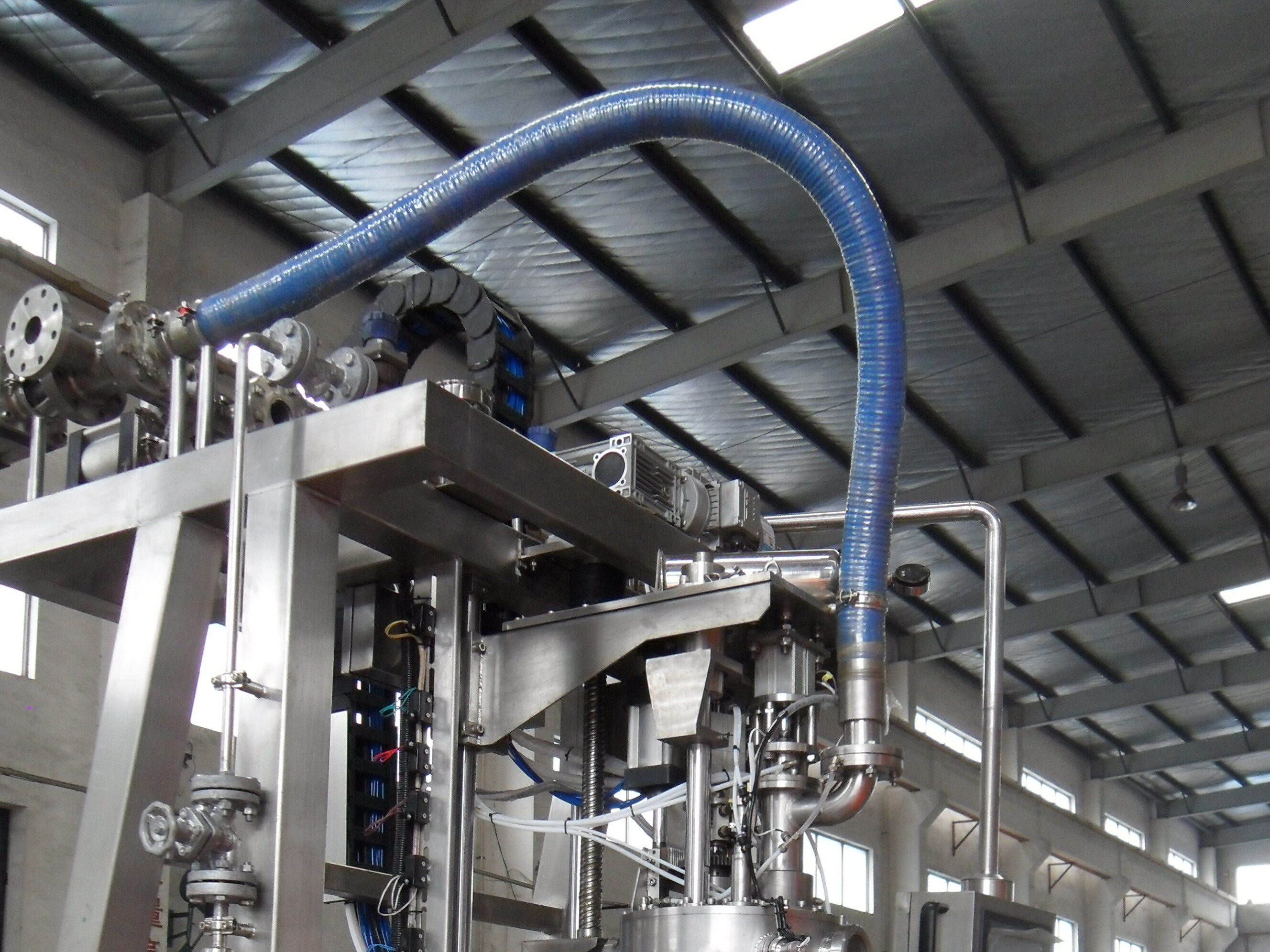

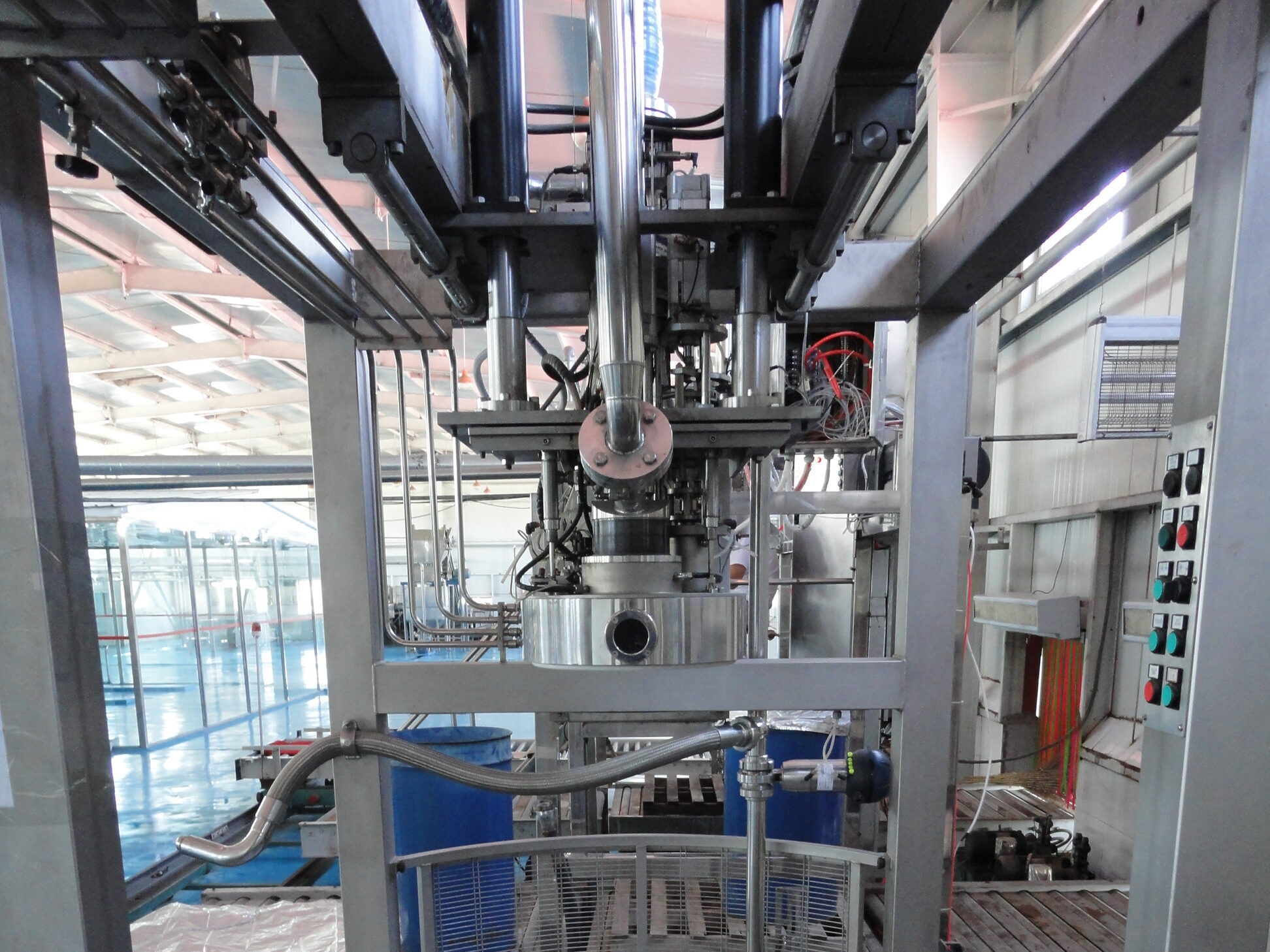

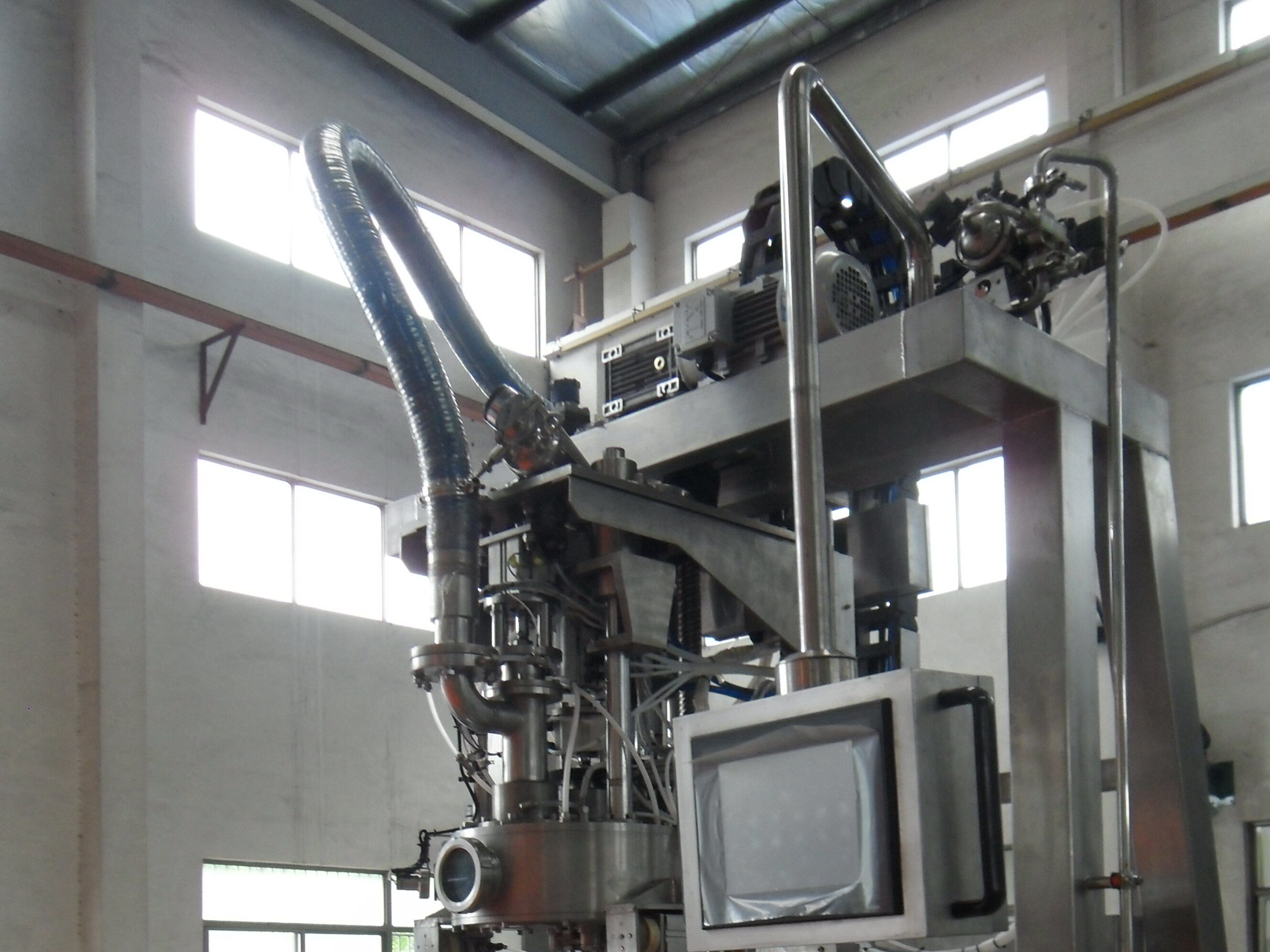

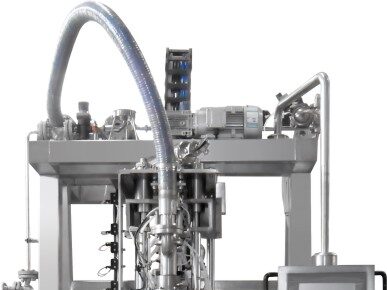

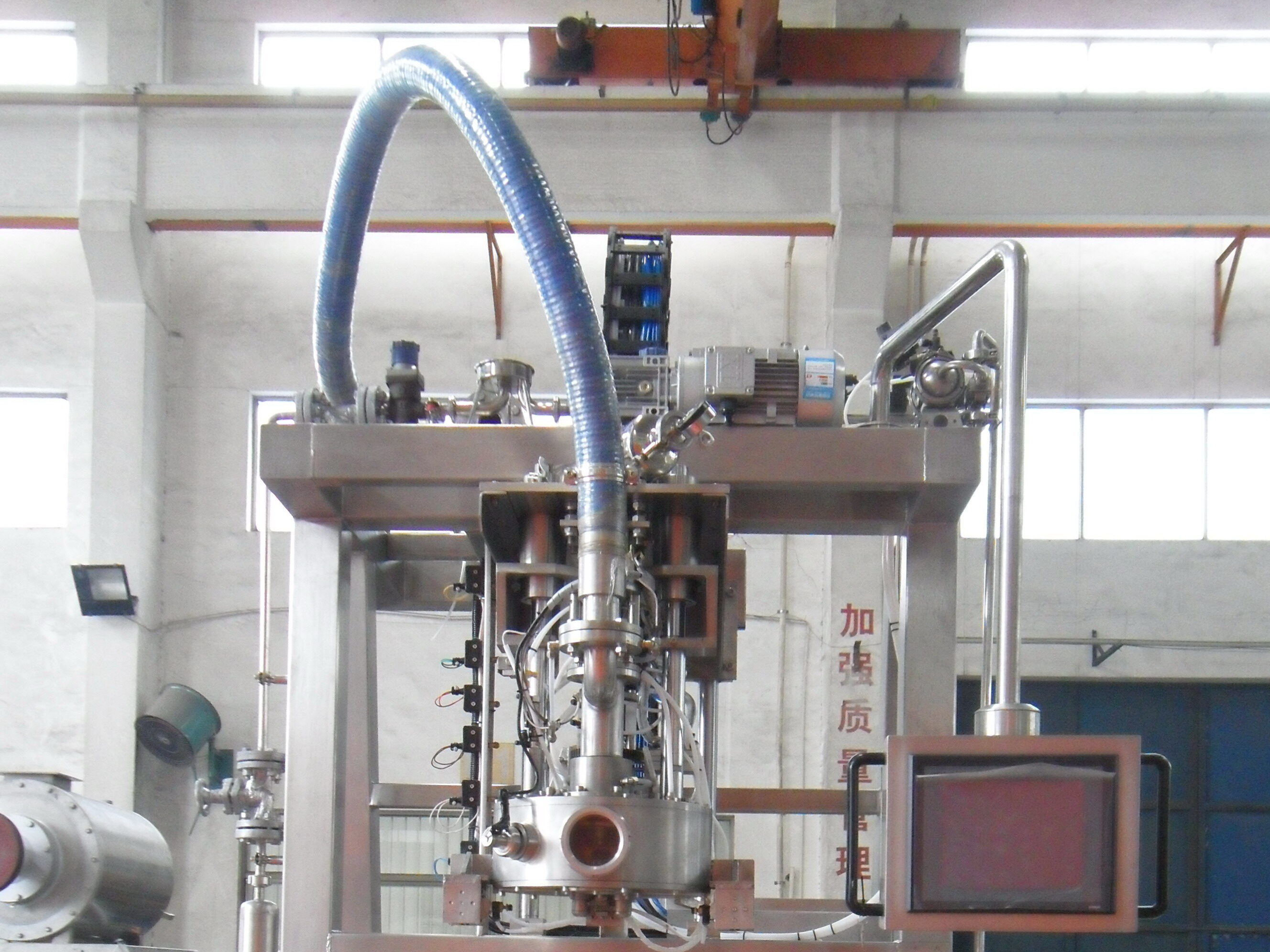

Aseptic Filler

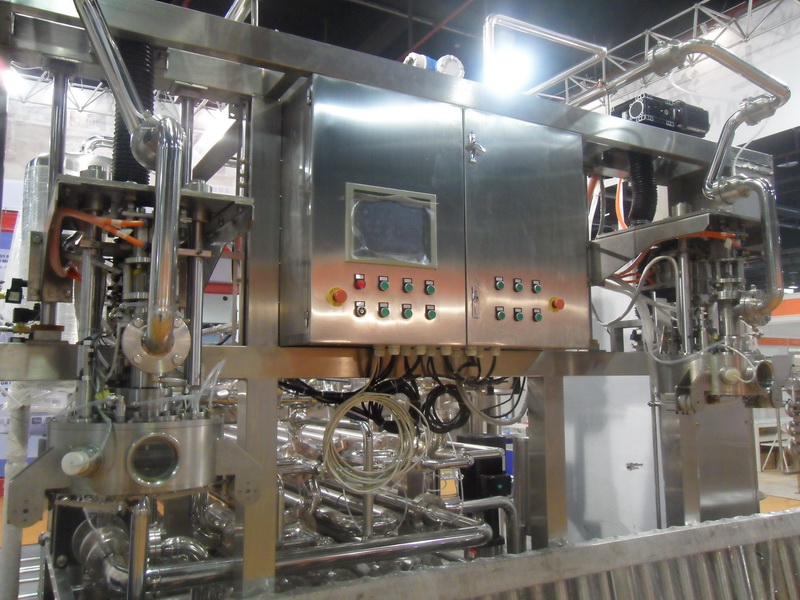

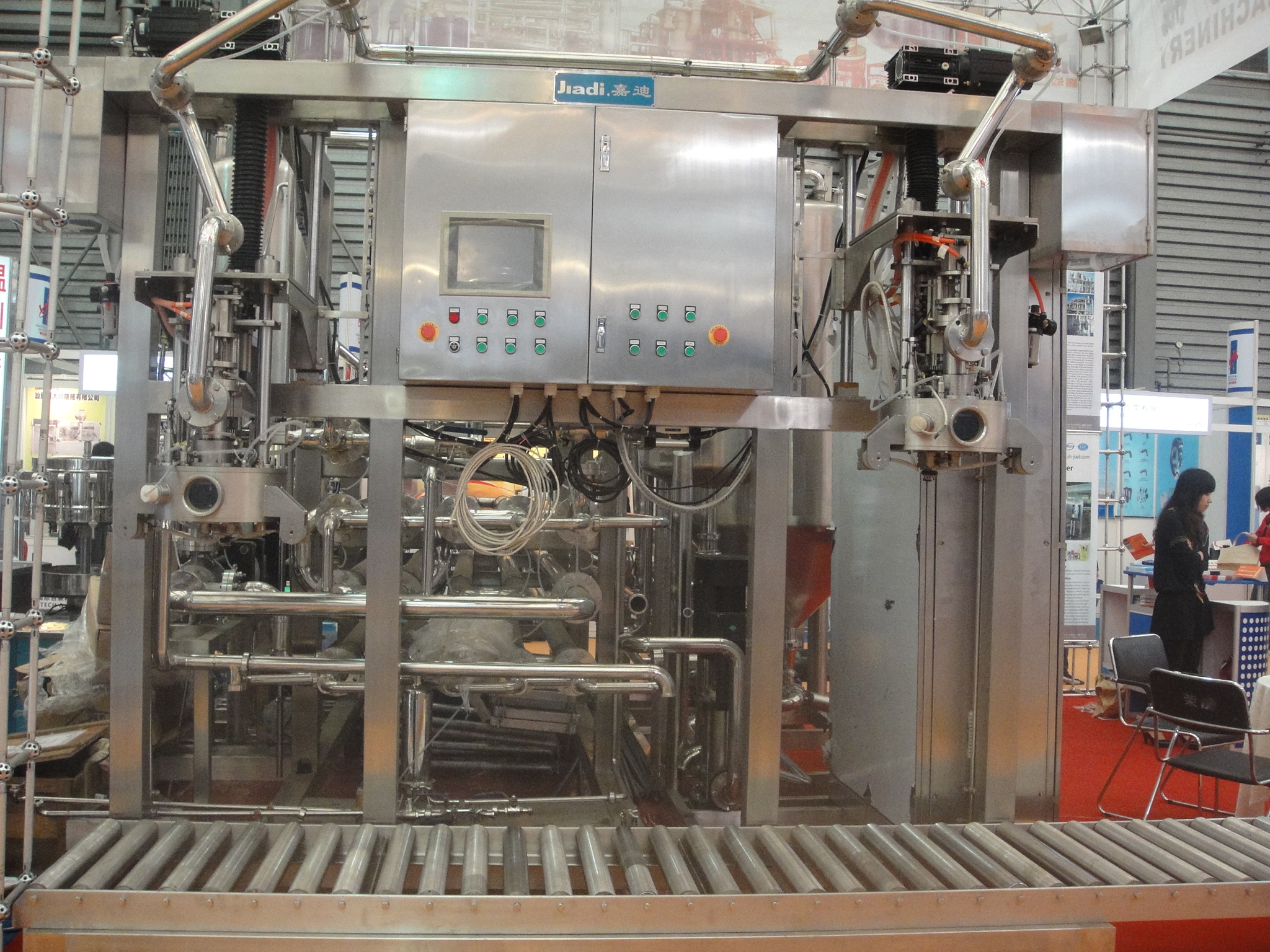

Aseptic filler is applicable to the aseptic filling of fruit pulp, fruit paste and fruit jam concentrate, milk such as tomato paste, strawberry paste, blackberry paste, carrot paste, peach paste, apricot paste, onion paste, chili paste. The aseptic filler is with two types: one filling head and double filling heads.
The filling head can be one or two according to the required capacity.
Technical Parameter
| Model | Capacity | Filling head | Power | Steam consumption | Dimension |
|---|---|---|---|---|---|
| GC-AF-1 | 1-3 t/h | 1 | 1.5kw | 100kg/h | 1400x1200x2600mm |
| GC-AF-2 | 3-10 t/h | 2 | 3kw | 200kg/h | 2400x1200x2600mm |
Characteristic
- Aseptic filler is composed of control system, filling head, bag nozzle fixed pincers, lid opening pincers, lid close pincers, inspection window and lifting platform.
- PLC automatic control, touch screen to do parameter setting.
- The filling volume of the bag is controlled by imported flow meter or electric weighing sensor. It is separate from this offer. It is connected with sterilizer. When it reaches the setting volume, filling machine can seal the lid automatically.
- The filling chamber can keep the aseptic temperature 95℃ to guarantee the aseptic environment during the filling process.
- Sterilize the cap & spout of the bag and the filling chamber by means of steam spraying.
- Filling head, automatic electric weighing sensor system; control system of sterilizing, cleaning; separate automatic control system which connects with the CIP device; self-diagnosis system; The control panel is OP and PLC which can realize the material conveying, signal conversion. The control component is SIEMENS.
