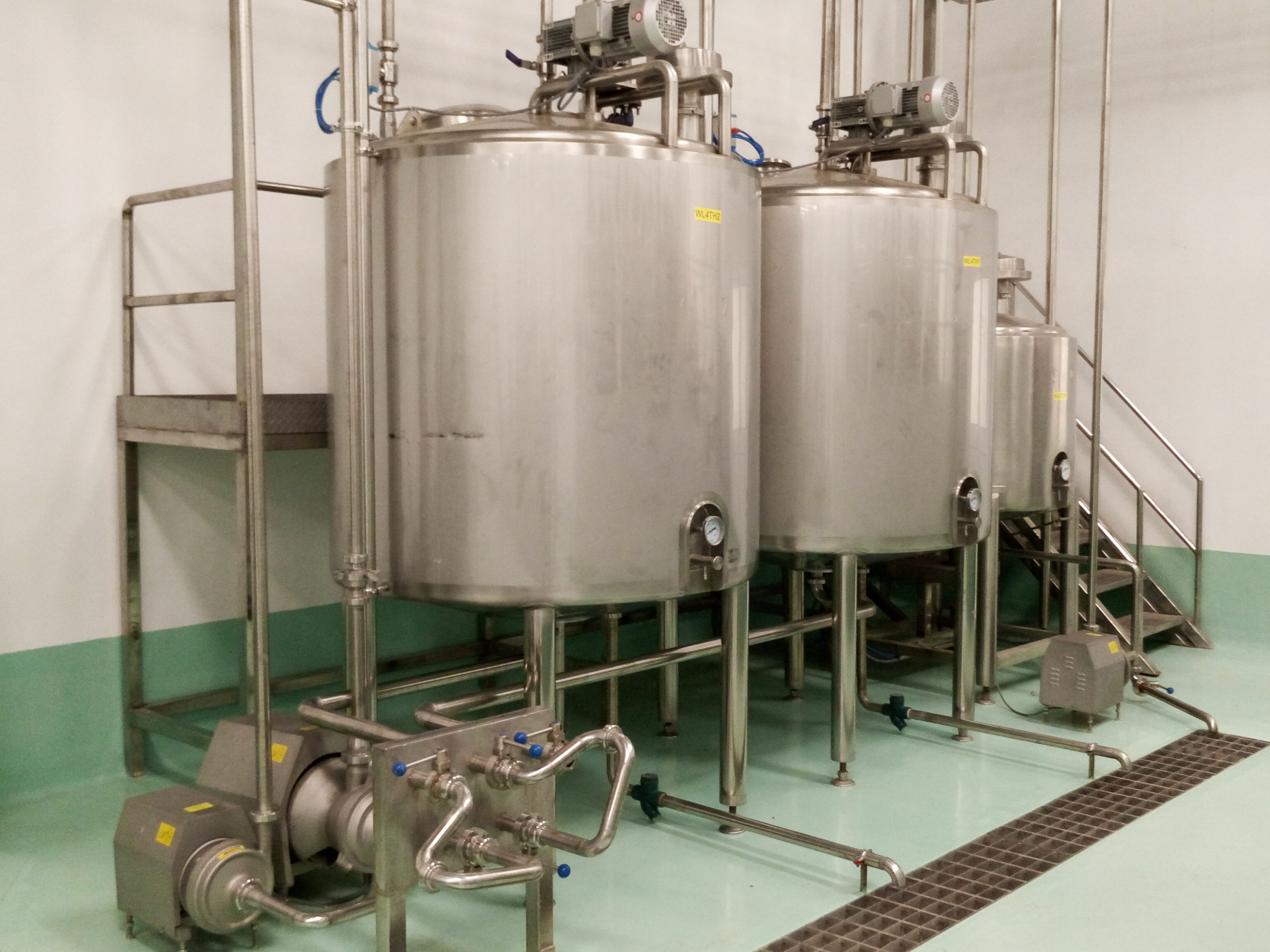

CIP Mixer tank
Application: foods, dairy, fruit juice beverages, pharmacy, chemical, biological engineering
Volume range: 500-15000 L
Material: sanitary stainless steel
Insulation thickness: 50-60 mm
Inlet/outlet diameter: Ø38/Ø51 or Ø65/Ø51
Category：Tomato Paste Production Line
Product Details
Mixing tank is used as liquid storage tank, liquid composing tank, temporary storage tank and liquid blending tank, etc. Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.

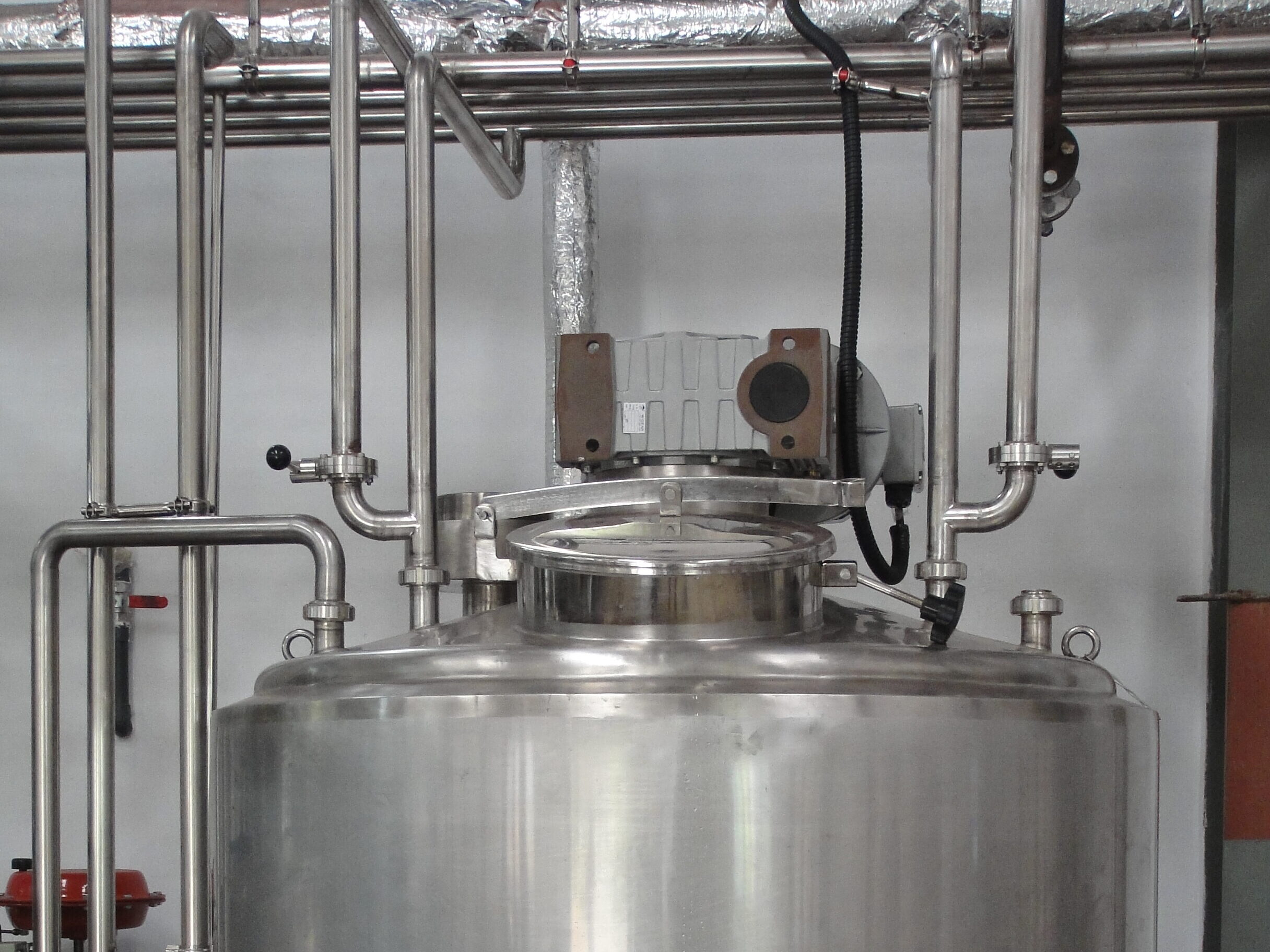

Configuration of Tank
- Quick open manhole
- CIP cleaning ball
- Fly and insect resistant sanitary breathing cover
- Adjustable triangular bracket
- Dismountable materials input pipe assembly
- Thermometer (according to customer requirements)
- Ladder (according to customer requirements)
- Vertical blender (paddle type or frame type are available if customers require)
- Eddy-proof board
Technical Parameter
| Model | Volume(L) | External diameter(mm) | Height(mm) | Insulation thickness(mm) | Diameter of inlet/outlet |
|---|---|---|---|---|---|
| MT-0.5 | 500 | 800 | 2140 | 50 | Ø38/Ø51 |
| MT-1 | 1000 | 1050 | 2380 | 50 | Ø38/Ø51 |
| MT-1.5 | 1500 | 1180 | 2550 | 50 | Ø38/Ø51 |
| MT-2 | 2000 | 1340 | 2760 | 50 | Ø38/Ø51 |
| MT-2.5 | 2500 | 1420 | 2940 | 50 | Ø38/Ø51 |
| MT-3 | 3000 | 1540 | 3050 | 50 | Ø38/Ø51 |
| MT-4 | 4000 | 1650 | 3200 | 50 | Ø38/Ø51 |
| MT-5 | 5000 | 1780 | 3250 | 50 | Ø38/Ø51 |
| MT-6 | 6000 | 1900 | 3350 | 50 | Ø38/Ø51 |
| MT-8 | 8000 | 2060 | 3800 | 60 | Ø65/Ø51 |
| MT-10 | 10000 | 2300 | 4050 | 60 | Ø65/Ø51 |
| MT-12 | 12000 | 2520 | 4450 | 60 | Ø65/Ø51 |
| MT-15 | 15000 | 2540 | 4700 | 60 | Ø65/Ø51 |
Characteristic
- Adopt structure of internal tank and external package, with heat preservation materials inside.
- Materials are all sanitary stainless steel.
- Humanized structure design and easy to operate.
- Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation.
