Automatic CIP juice system2
Model: FCIP-1 / FCIP-2 / FCIP-3 / FCIP-5 / FCIP-10
Application: cleaning of milk, beverage, beer, fruit juice processing lines
Tank capacity: 1000-10000 L
Pump capacity: 20 m³/h
Pump height: 36 m
Power: 3-12 kw
Category：Tomato Paste Production Line
Product Details
CIP system is used for cleaning of milk, beverage, beer, fruit juice processing line to guarantee the sanitary requirement of the machines.
Main Equipments

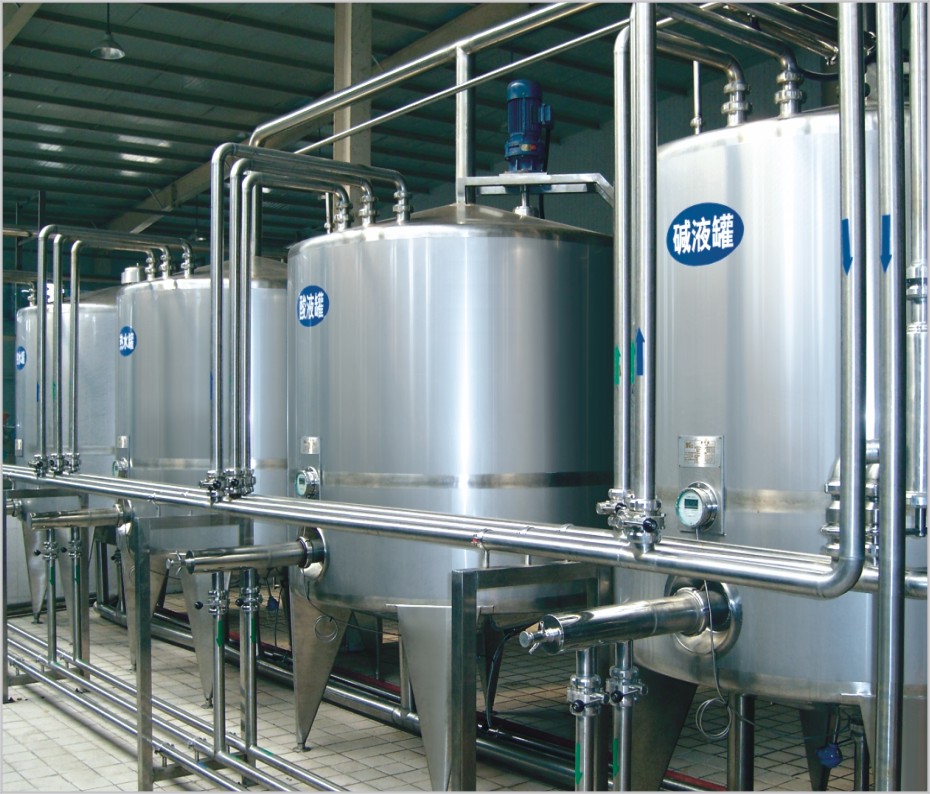

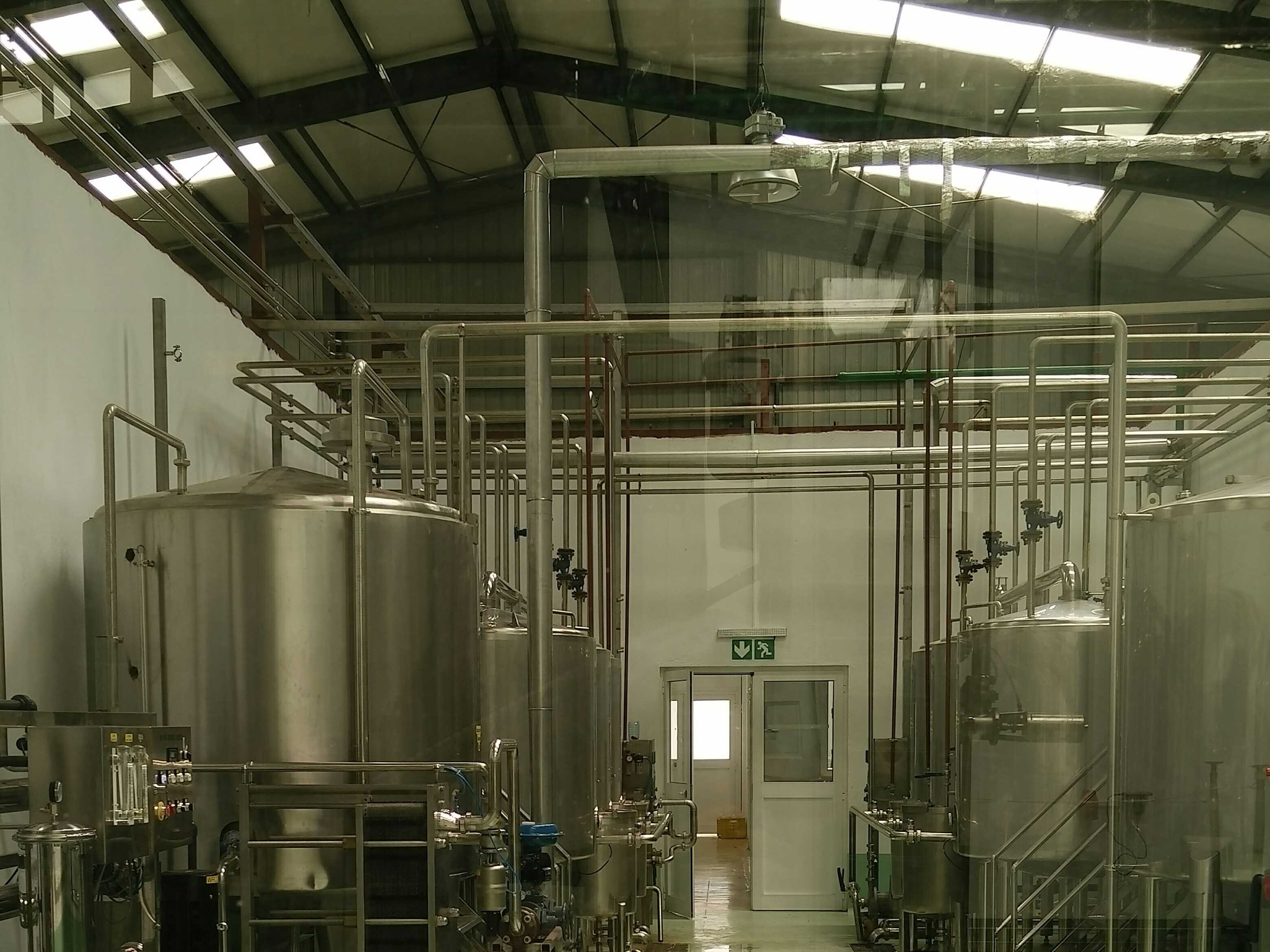

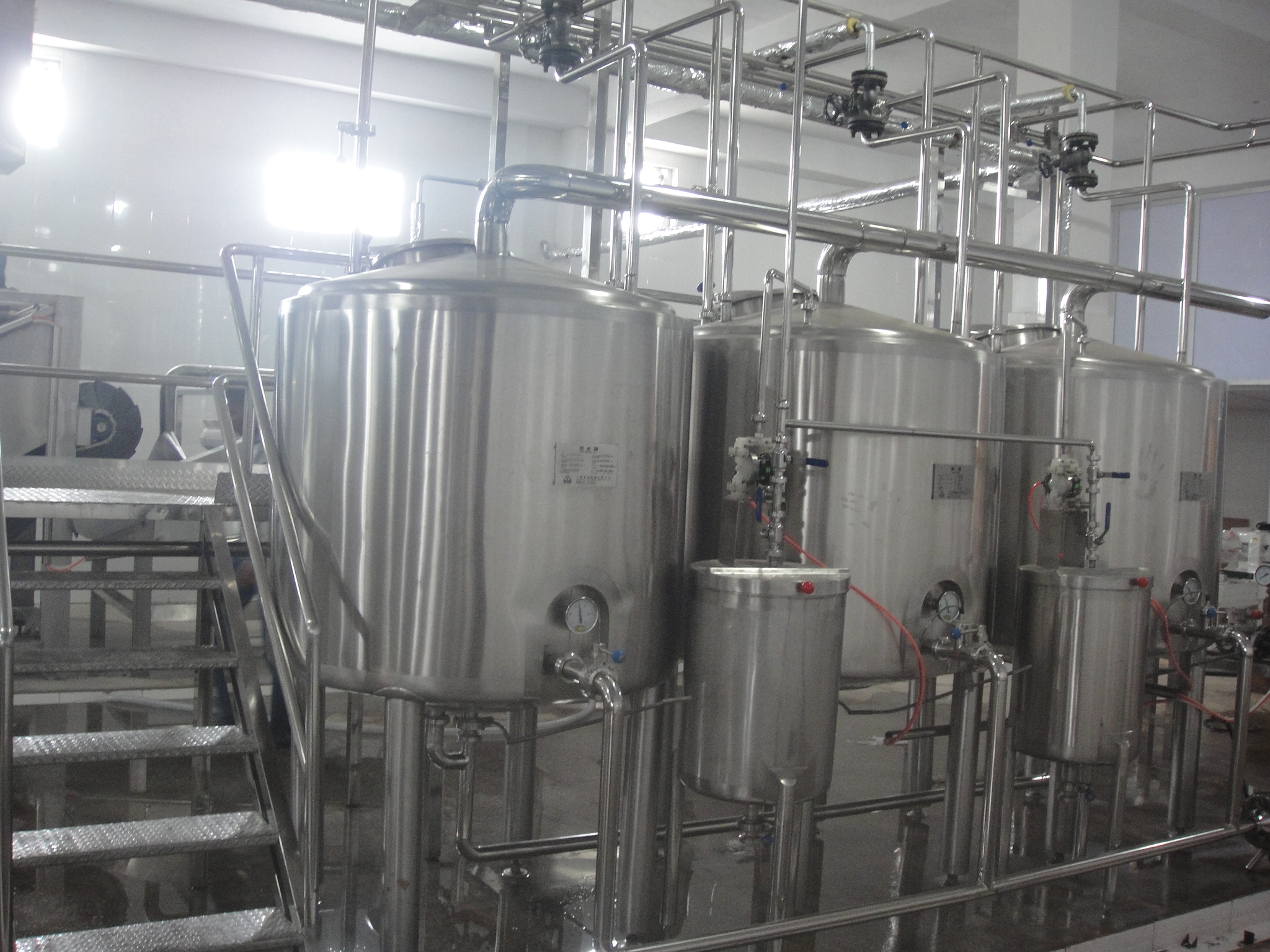

- CIP cleaning liquid storage tanks (acid tank, alkali tank, hot water tank)
- CIP pump
- Two diaphragm pumps for thick acid/alkali
- Heat exchanger
- One electric control cabinet
- One group of control pipe and valve components
- One suit of auto-performance components and electric appliance material
Technical Parameter
| Model | Acid tank | Soda tank | Water tank | Pump capacity | Height of pump | Power |
|---|---|---|---|---|---|---|
| FCIP-1 | 1000L | 1000L | 1000L | 20m³/h | 36m | 3kw |
| FCIP-2 | 2000L | 2000L | 2000L | 20m³/h | 36m | 3kw |
| FCIP-3 | 3000L | 3000L | 3000L | 20m³/h | 36m | 3kw×2 |
| FCIP-5 | 5000L | 5000L | 5000L | 20m³/h | 36m | 3kw×2 |
| FCIP-10 | 10000L | 10000L | 10000L | 20m³/h | 36m | 3kw×4 |
Characteristic
- Flexible: The system can go on the cleaning separated one by one, and also can go on automatic cleaning according to the special order of cleaning procedures by PLC.
- Safety and reliable: The acid and alkali are all in the tank with level control and overflow protection system.
- Economic and reliable: This system reduces more time and raises the working efficiency. Cleaning agents and water use can be more scientific and reasonable. It also can reduce the steam consumption and other energy lost.
