Integrated CIP system
Model: YCIP-0.3 / YCIP-0.5 / YCIP-1
Tank capacity: 300-1000 L per tank
Pump capacity: 10 m³/h
Pump height: 36 m
Power: 3 kw
Category：Tomato Paste Production Line
Product Details
CIP system is used for cleaning of milk, beverage, beer, fruit juice processing line to guarantee the sanitary requirement of the machines.

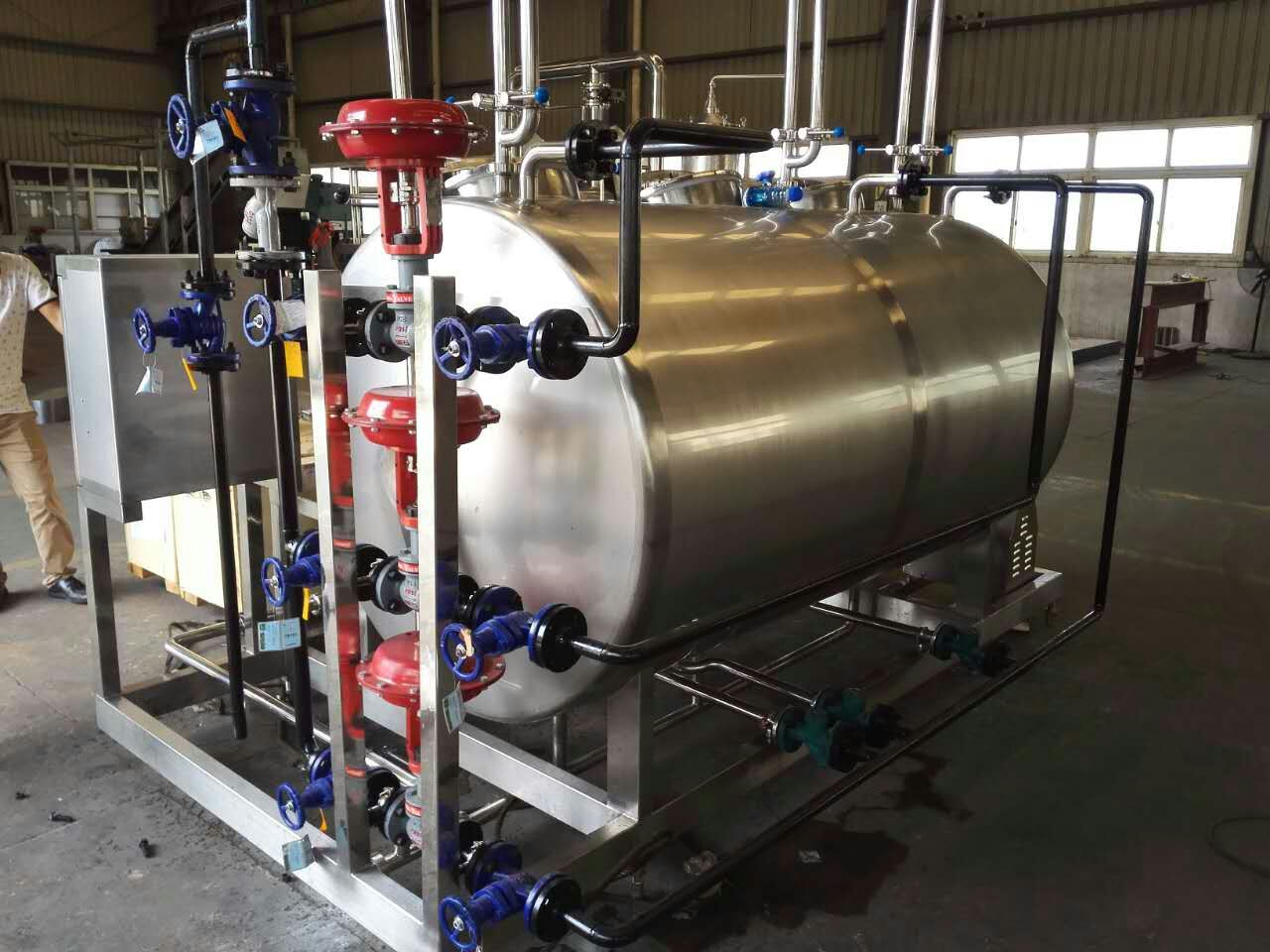

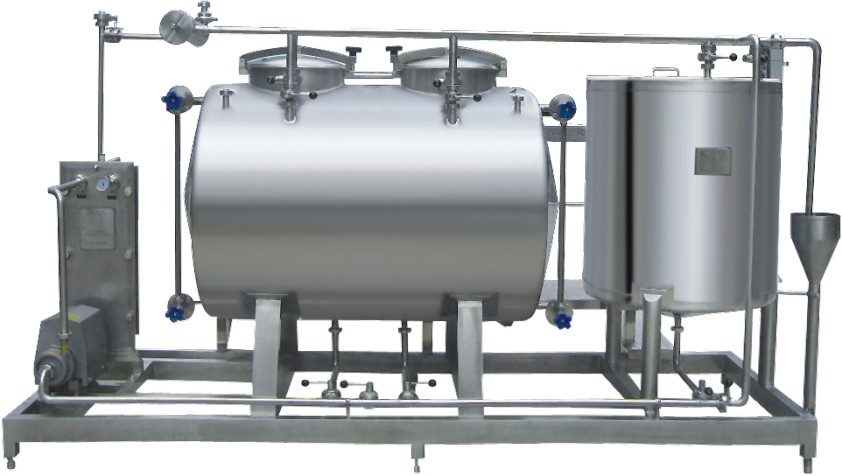

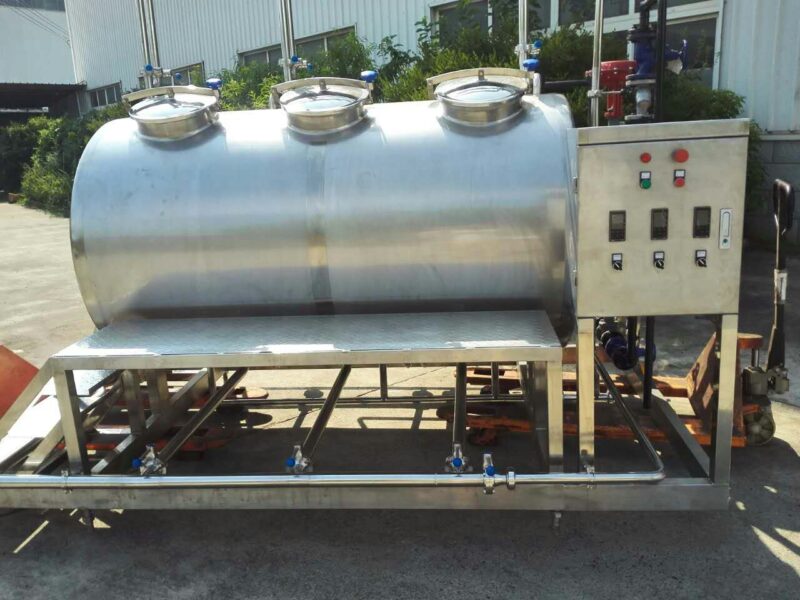

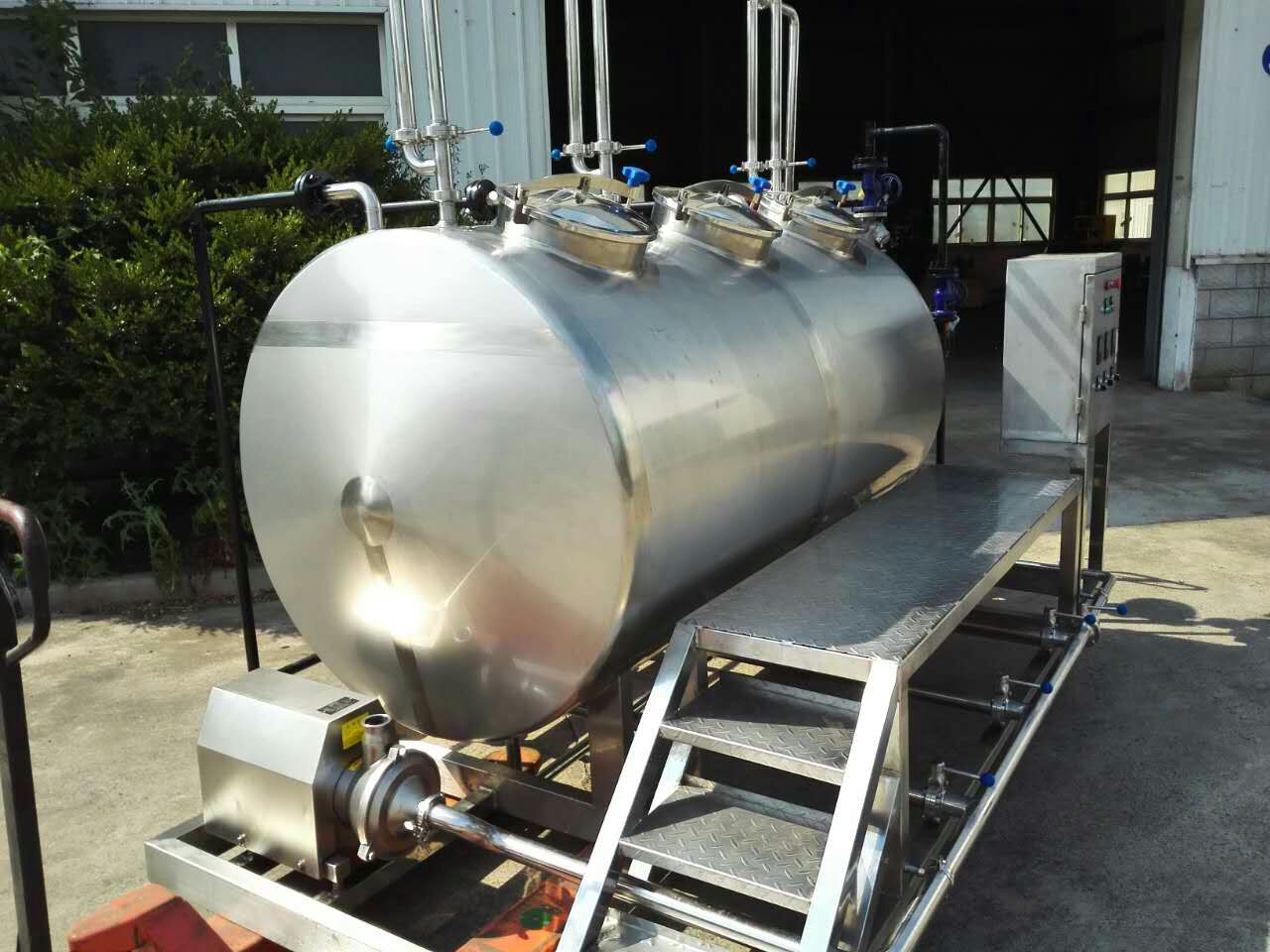

CIP system is consisting of acid tank, soda tank, water tank, CIP pump, steam system and electric control system.
Technical Parameter
| Model | Acid tank | Soda tank | Water tank | Capacity of pump | Height of pump | Power |
|---|---|---|---|---|---|---|
| YCIP-0.3 | 300L | 300L | 300L | 10m³/h | 36m | 3kw |
| YCIP-0.5 | 500L | 500L | 500L | 10m³/h | 36m | 3kw |
| YCIP-1 | 1000L | 1000L | 1000L | 10m³/h | 36m | 3kw |
Characteristic
Operators start heating of cleaning liquids. When concentration of cleaning liquids is not up to the concentration of cleaning, operator will add thick acid liquids or thick alkali liquids to acid tanks or alkali tanks. During cleaning, CIP liquids are fed through pipes and valves by operators. Operators shall open the manual valve to feed the water into water tanks.
Advantages
- Small investment on equipment
- Lower professional knowledge requirements on operators
- After proper training, operator will be able to operate
- Good choice for small manufacturers of milk products and juice
Disadvantage
- Low automation
- Control on temperature of cleaning liquid is not precise
- Not safe for adding the acid and soda manually by operators
- Low production efficiency
